Thread Size: JIS
Material: Brass, chromium plated
Product Certification: CE certificationand ISO9001.
Protection Degree: IP54
Working temperature: -40℃to 110℃, short time up to 120℃.
Function: Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.
More options: Customization is acceptable.Welcome to inquire.
| Marine Stuffing Box- JIS Clamping Type | |||||
| Product Code | Thread AG | Packing Type | Cable Range (mm) | Thread Length GL(mm) | Mounting Hole Dia (mm) |
| JX-JIS10A | 3/8’’ | A | 6-7 | 11 | 18 |
| JX-JIS10B | B | 7-8 | |||
| JX-JIS15A | 1/2’’ | A | 8-9 | 11 | 22 |
| JX-JIS15B | B | 9-10 | |||
| JX-JIS15C | C | 9-11 | |||
| JX-JIS20A | 3/4’’ | A | 11-12 | 11 | 27 |
| JX-JIS20B | B | 12-13 | |||
| JX-JIS20C | C | 12-15 | |||
| JX-JIS25A | 1’’ | A | 15-16 | 11 | 34 |
| JX-JIS25B | B | 16-18 | |||
| JX-JIS25C | C | 16-20 | |||
| JX-JIS30A | 1-1/4’’ | A | 20-22 | 12 | 43 |
| JX-JIS30B | B | 22-24 | |||
| JX-JIS30C | C | 22-26 | |||
| JX-JIS35A | 1-1/2’’ | A | 26-28 | 12 | 49 |
| JX-JIS35B | B | 28-30 | |||
| JX-JIS35C | C | 26-30 | |||
| JX-JIS40A | A | 30-32 | |||
| JX-JIS40B | B | 32-34 | |||
| JX-JIS40C | C | 30-34 | |||
| JX-JIS45A | 2’’ | A | 34-36 | 12 | 61 |
| JX-JIS45B | B | 36-38 | |||
| JX-JIS45C | C | 36-40 | |||
| JX-JIS50A | A | 40-42 | |||
| JX-JIS50B | B | 42-44 | |||
| JX-JIS50C | C | 40-44 | |||
| JX-JIS55A | 2-1/2’’ | A | 44-46 | 12 | 76 |
| JX-JIS55B | B | 46-48 | |||
| JX-JIS55C | C | 46-50 | |||
| JX-JIS60A | A | 50-52 | |||
| JX-JIS60B | B | 52-54 | |||
| JX-JIS60C | C | 52-56 | |||
| JX-JIS65A | 3’’ | A | 56-58 | 14 | 89 |
| JX-JIS65B | B | 58-60 | |||
| JX-JIS70A | A | 60-62 | |||
| JX-JIS70B | B | 62-64 | |||
| JX-JIS75A | A | 64-66 | |||
| JX-JIS75B | B | 66-70 | |||

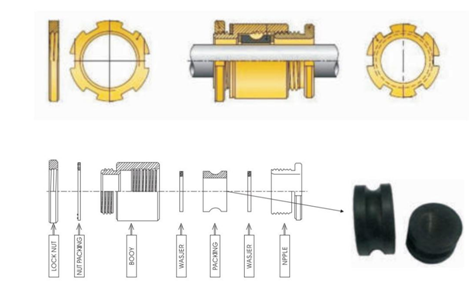

The Drawing of Marine Cable Gland:
