Material:
Adopting Nylon PA66 certificated by UL
Product Certification: CE certificationand ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃, short time up to 120℃.
Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.
Function:
1. Can be used in flexible metallic conduit or liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.
2.Use to positively bond the conduit to a box or enclosure.
More options: Customization is accept.Welcome to inquire.
| Flexible Cable Gland(With Strain Relef) --PG thread | |||||
| Product Code | Thread AG | Cable range(mm) | Thread O.D AG (mm) | Thread length GL(mm) | Spanner Size (mm) |
| JX-PG7A-NFL | PG7 | 3-6.5 | 12.5 | 8 | 16 |
| JX-PG7B-NFL | PG7 | 2-5 | 12.5 | 8 | 16 |
| JX-PG9A-NFL | PG9 | 4-8 | 15.2 | 8 | 19 |
| JX-PG9B-NFL | PG9 | 2-6 | 15.2 | 8 | 19 |
| JX-PG11A-NFL | PG11 | 5-10 | 18.6 | 8 | 22 |
| JX-PG11B-NFL | PG11 | 3-7 | 18.6 | 8 | 22 |
| JX-PG13.5A-NFL | PG13.5 | 6-12 | 20.4 | 9 | 24 |
| JX-PG13.5B-NFL | PG13.5 | 5-9 | 20.4 | 9 | 24 |
| JX-PG16A-NFL | PG16 | 10-14 | 22.5 | 10 | 27 |
| JX-PG16B-NFL | PG16 | 7-12 | 22.5 | 10 | 27 |
| JX-PG21A-NFL | PG21 | 13-18 | 28.3 | 10 | 33 |
| JX-PG21B-NFL | PG21 | 9-16 | 28.3 | 10 | 33 |

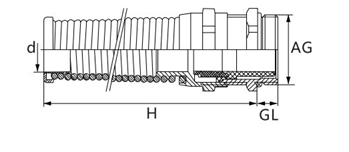

The Drawing of Flexible Cable Gland:
