Material: Nylon 66 94V-2 certificated by UL.
Heat-resisting, erosion control, insulate well and not apt to age.
Color: Natural ( or white, standard color), UV black and other colors are available as requested.
Operating temperature: -35°C to 85°C

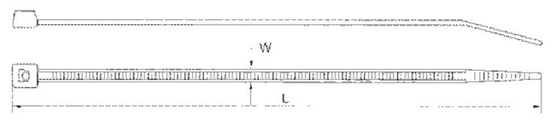

The Drawing:
| Nylon Cable Tie | ||||||
| Code | Length (L) | Width |
Bundle Diameter (mm) |
Tensile Strength | ||
| INCH | MM | Lbs | Kgs | |||
| JX-2.5*80 | 3.2’’ | 80 | 2.5 | 43147 | 18 | 8 |
| JX-2.5*100 | 4.0’’ | 100 | 2.5 | 43153 | 18 | 8 |
| JX-2.5*120 | 4.7’’ | 120 | 2.5 | 2-30 | 18 | 8 |
| JX-2.5*150 | 6.0’’ | 150 | 2.5 | 2-35 | 18 | 8 |
| JX-2.5*200 | 8.0’’ | 200 | 2.5 | 2-50 | 18 | 8 |
| JX-3.6*150 | 6.0’’ | 150 | 3.6 | 3-35 | 40 | 18 |
| JX-3.6*180 | 7.1’’ | 180 | 3.6 | 3-42 | 40 | 18 |
| JX-3.6*200 | 8.0’’ | 200 | 3.6 | 3-50 | 40 | 18 |
| JX-3.6*250 | 10’’ | 250 | 3.6 | 3-65 | 40 | 18 |
| JX-3.6*300 | 12’’ | 300 | 3.6 | 3-80 | 40 | 18 |
| JX-3.6*370 | 14.5’’ | 370 | 3.6 | 3-102 | 40 | 18 |
| JX-4.8*200 | 8.0’’ | 200 | 4.8 | 3-50 | 50 | 22 |
| JX-4.8*250 | 10’’ | 250 | 4.8 | 3-65 | 50 | 22 |
| JX-4.8*300 | 12’’ | 300 | 4.8 | 3-80 | 50 | 22 |
| JX-4.8*350 | 14’’ | 350 | 4.8 | 3-90 | 50 | 22 |
| JX-4.8*370 | 14.5’’ | 370 | 4.8 | 3-102 | 50 | 22 |
| JX-4.8*400 | 16’’ | 400 | 4.8 | 3-105 | 50 | 22 |
| JX-4.8*450 | 18’’ | 450 | 4.8 | 3-130 | 50 | 22 |
| JX-4.8*500 | 20’’ | 500 | 4.8 | 3-150 | 50 | 22 |
| JX-7.6*200 | 8’’ | 200 | 7.6 | 3-50 | 120 | 55 |
| JX-7.6*250 | 10’’ | 250 | 7.6 | 4-65 | 120 | 55 |
| JX-7.6*300 | 12’’ | 300 | 7.6 | 4-80 | 120 | 55 |
| JX-7.6*350 | 14’’ | 350 | 7.6 | 4-90 | 120 | 55 |
| JX-7.6*380 | 15’’ | 380 | 7.6 | 4-100 | 120 | 55 |
| JX-7.6*400 | 16’’ | 400 | 7.6 | 4-105 | 120 | 55 |
| JX-7.6*450 | 18’’ | 450 | 7.6 | 4-110 | 120 | 55 |
| JX-7.6*500 | 20’’ | 500 | 7.6 | 4-150 | 120 | 55 |
| JX-7.6*550 | 21.6’’ | 550 | 7.6 | 4-160 | 120 | 55 |
| JX-7.6*700 | 28’’ | 700 | 7.6 | 4-195 | 120 | 55 |
