Material: Stainless Steel 304/316
Sealing: Modified Rubber
Shape: Hexagonal,Round
Protection Degree: IP66
Temperature: -40 DEG to 100 DEG, short time to 120 DEG
Features: In order to close the reserved holes or extra holes, make the product beautiful, it can keep waterproof, dust-proof, salt, acid, alcohol, oil and solvent resistant.
Certificate: CE, Exd IIC Gb/Ex e II GB
Note: Customization is available. Welcome to inquire.
| EX Stainless Steel Screw Cap- Metric, PG Thread | |||||
| Round Series Model | Hexagon Series Model | Thread specification AG | Thread length GL (mm) | H(mm) | D(mm) |
| JX-PG7-SSC | JX-HPG7-SSC | PG7 | 5 | 8 | 14 |
| JX-PG9- SSC | JX-HPG9- SSC | PG9 | 6 | 9 | 17 |
| JX-PG11- SSC | JX-HPG11- SSC | PG11 | 6 | 9 | 20 |
| JX-PG13.5- SSC | JX-HPG13.5- SSC | PG13.5 | 6.5 | 9.5 | 22 |
| JX-PG16- SSC | JX-HPG16- SSC | PG16 | 6.5 | 9.5 | 24 |
| JX-PG21- SSC | JX-HPG21- SSC | PG21 | 7 | 11 | 30 |
| JX-PG29- SSC | JX-HPG29- SSC | PG29 | 8 | 12 | 39 |
| JX-PG36- SSC | JX-HPG36- SSC | PG36 | 9 | 15 | 50 |
| JX-PG42- SSC | JX-HPG42- SSC | PG42 | 10 | 16 | 57 |
| JX-PG48- SSC | JX-HPG48- SSC | PG48 | 10 | 16 | 64 |
| JX-M12- SSC | JX-HM12- SSC | M12 | 5 | 8 | 14 |
| JX-M16- SSC | JX-HM16- SSC | M16 | 6 | 9 | 17 |
| JX-M18- SSC | JX-HM18- SSC | M18 | 6 | 9 | 20 |
| JX-M20- SSC | JX-HM20- SSC | M20 | 6.5 | 9.5 | 22 |
| JX-M22- SSC | JX-HM22- SSC | M22 | 6.5 | 9.5 | 24 |
| JX-M24- SSC | JX-HM24- SSC | M24 | 6.5 | 10 | 27 |
| JX-M25- SSC | JX-HM25- SSC | M25 | 6.5 | 10 | 27 |
| JX-M30- SSC | JX-HM30- SSC | M30 | 6.5 | 10 | 33 |
| JX-M32- SSC | JX-HM32- SSC | M32 | 7 | 11 | 35 |
| JX-M36- SSC | JX-HM36- SSC | M36 | 8 | 12 | 39 |
| JX-M40- SSC | JX-HM40- SSC | M40 | 8 | 13 | 43 |
| JX-M47- SSC | JX-HM47- SSC | M47 | 9 | 15 | 50 |
| JX-M50- SSC | JX-HM50- SSC | M50 | 9 | 15 | 55 |
| JX-M54- SSC | JX-HM54- SSC | M54 | 10 | 16 | 57 |
| JX-M60- SSC | JX-HM60- SSC | M60 | 10 | 16 | 64 |
| JX-M63- SSC | JX-HM63- SSC | M63 | 10 | 16 | 66 |
| JX-M72- SSC | JX-HM72- SSC | M72 | 10 | 16 | 75 |

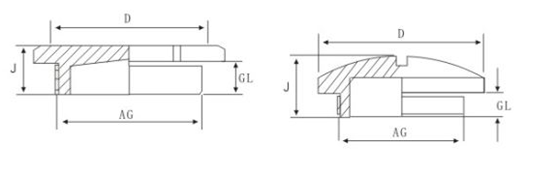

The Drawing of Stainless Steel Screw Cap:
