Thread Size: Metric Thread
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃to 100℃short time to 120℃
Function: Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.
More options: Customization is acceptable.Welcome to inquire.
| Nylon/Plastic Cable Gland-- Metric thread | |||||
| Product Code | Thread AG | Cable range(mm) | Thread O.D. (mm) | Thread length GL(mm) | Spanner Size (mm) |
| JX-M8-SS | M8*1.0 | 2-5.5 | 8 | 5 | 12 |
| JX-M10-SS | M10*1.0 | 3-6.5 | 10 | 7 | 14 |
| JX-M12-SS | M12*1.5 | 3-6.5 | 12 | 7 | 14 |
| JX-M14-SS | M14*1.5 | 4-8 | 14 | 7 | 17 |
| JX-M16-SS | M16*1.5 | 4-8 | 16 | 8 | 18 |
| JX-M18-SS | M18*1.5 | 5-10 | 18 | 8 | 20 |
| JX-M20-SS | M20*1.5 | 6-12 | 20 | 8 | 22 |
| JX-M22-SS | M22*1.5 | 10-14 | 22 | 8 | 24 |
| JX-M24-SS | M24*1.5 | 10-14 | 24 | 9 | 24/27 |
| JX-M25A-SS | M25*1.5 | 10-14 | 25 | 9 | 24/27 |
| JX-M25B-SS | M25*1.5 | 8-16 | 25 | 9 | 27 |
| JX-M25C-SS | M25*1.5 | 13-18 | 25 | 9 | 30/27 |
| JX-M27A-SS | M27*1.5 | 13-18 | 27 | 9 | 30 |
| JX-M27B-SS | M27*2.0 | 13-18 | 27 | 9 | 30 |
| JX-M28A-SS | M28*1.5 | 13-18 | 28 | 9 | 30 |
| JX-M28B-SS | M28*2.0 | 13-18 | 28 | 9 | 30 |
| JX-M30A-SS | M30*1.5 | 13-18 | 30 | 9 | 30/32 |
| JX-M30B-SS | M30*2.0 | 13-18 | 30 | 9 | 30/32 |
| JX-M32A-SS | M32*1.5 | 15-22 | 32 | 10 | 35 |
| JX-M32B-SS | M32*1.5 | 16-20 | 32 | 10 | 35 |
| JX-M32C-SS | M32*2.0 | 15-22 | 32 | 10 | 35 |
| JX-M33A-SS | M33*1.5 | 15-22 | 33 | 10 | 35 |
| JX-M33B-SS | M33*2.0 | 15-22 | 33 | 10 | 35 |
| JX-M36A-SS | M36*1.5 | 18-25 | 36 | 10 | 40 |
| JX-M36B-SS | M36*2.0 | 18-25 | 36 | 10 | 40 |
| JX-M37A-SS | M37*1.5 | 18-25 | 37 | 10 | 40 |
| JX-M37B-SS | M37*2.0 | 18-25 | 37 | 10 | 40 |
| JX-M40A-SS | M40*1.5 | 18-25 | 40 | 11 | 40/45 |
| JX-M40B-SS | M40*2.0 | 18-25 | 40 | 11 | 40/45 |
| JX-M40C-SS | M40*1.5 | 22-30 | 40 | 11 | 45 |
| JX-M40D-SS | M40*2.0 | 22-30 | 40 | 11 | 45 |
| JX-M42A-SS | M42*1.5 | 22-30 | 42 | 11 | 45 |
| JX-M42B-SS | M42*2.0 | 22-30 | 42 | 11 | 45 |
| JX-M47A-SS | M47*1.5 | 25-33 | 47 | 11 | 50 |
| JX-M47B-SS | M47*2.0 | 25-33 | 47 | 11 | 50 |
| JX-M48A-SS | M48*1.5 | 25-33 | 48 | 11 | 50/52 |
| JX-M48B-SS | M48*2.0 | 25-33 | 48 | 11 | 50/52 |
| JX-M50A-SS | M50*1.5 | 32-38 | 50 | 12 | 50/55 |
| JX-M50B-SS | M50*2.0 | 32-38 | 50 | 12 | 50/55 |
| JX-M54A-SS | M54*1.5 | 32-38 | 54 | 12 | 57 |
| JX-M54B-SS | M54*2.0 | 32-38 | 54 | 12 | 57 |
| JX-M56A-SS | M56*1.5 | 32-38 | 56 | 12 | 57/59 |
| JX-M56B-SS | M56*2.0 | 32-38 | 56 | 12 | 57/59 |
| JX-M60A-SS | M60*1.5 | 37-44 | 60 | 13 | 64 |
| JX-M60B-SS | M60*2.0 | 37-44 | 60 | 13 | 64 |
| JX-M63A-SS | M63*1.5 | 37-44 | 63 | 13 | 64/68 |
| JX-M63B-SS | M63*2.0 | 37-44 | 63 | 13 | 64/68 |
| JX-M64A-SS | M64*1.5 | 37-44 | 64 | 13 | 64/68 |
| JX-M64B-SS | M64*2.0 | 37-44 | 64 | 13 | 64/68 |
| JX-M72-SS | M72*2.0 | 42-52 | 72 | 15 | 78 |
| JX-M75-SS | M75*2.0 | 42-52 | 75 | 15 | 78 |
| JX-M80-SS | M80*2.0 | 50-62 | 80 | 15 | 86/88 |
| JX-M88-SS | M88*2.0 | 60-70 | 88 | 15 | 98 |
| JX-M100-SS | M100*2.0 | 70-80 | 100 | 15 | 110 |

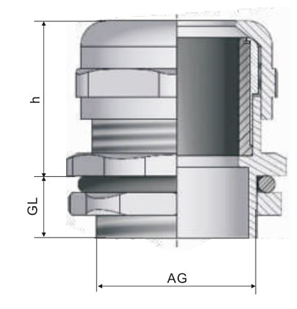

The Drawing of Stainless Steel Gland
