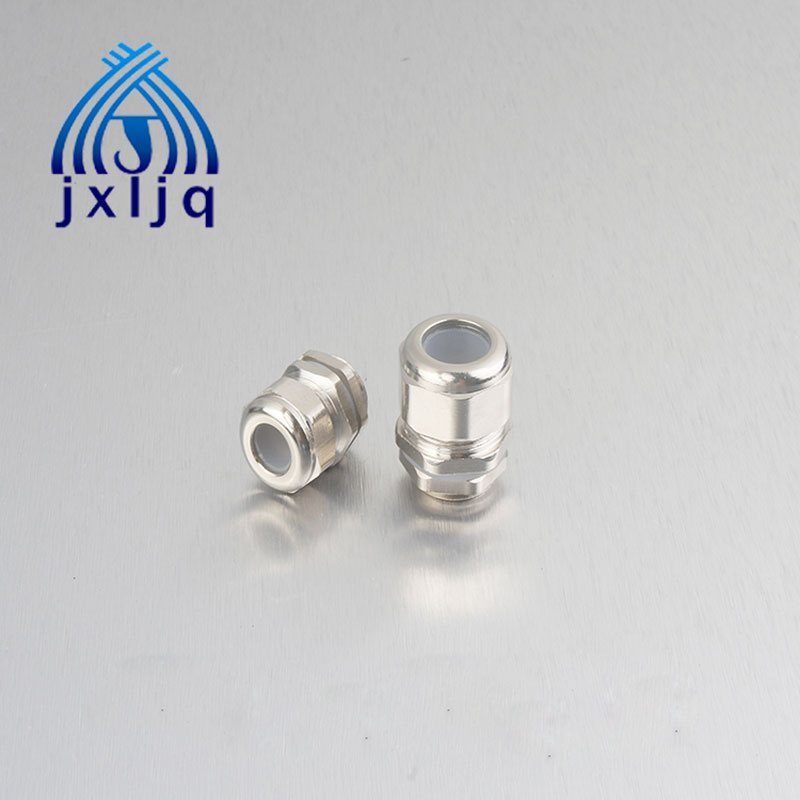

Material: Nickel-plated brass
Clamping ring: Silicon Rubber
Seal ring: Silicon Rubber
Certificate: CE,ISO9001,IP68,TUV
Operating temperature: - 60 °C to +250 °C
Applications: Applicable for control motor, launch motors, lighting equipment, refrigeration and air conditioning, household appliances, measuring machinery and equipment, automotive / marine equipment with access, communication equipment, and outdoor projects connected with the wire or cable and other harsh environments.
| Metal Cable Gland - Silicone Series | |||||||
| Product Code | Thread AG | Applicable cable range(mm) | Thread O.D.(mm) | Mounting Hole Diameter(mm) | Thread length GL(mm) | Joint length H(mm) | Spanner Size (mm) |
| JX-M8-Sl | M8*1 | 5.5-2 | 8 | 8-8.2 | 5 | 16 | 12 |
| JX-M12A-Sl | M12*1 | 6.5-3 | 12 | 12-12.2 | 7 | 19 | 14 |
| JX-M12B-Sl | M12*1.25 | 8-3 | 12 | 12-12.2 | 7 | 16 | 16 |
| JX-M12C-Sl | M12*1.5 | 8-3 | 12 | 12-12.2 | 7 | 16 | 16 |
| JX-M14-Sl | M14*1.5 | 8-3 | 14 | 14-14.2 | 7 | 16 | 16 |
| JX-M16-Sl | M16*1.5 | 9-4 | 16 | 16-16.2 | 8 | 20 | 20/18 |
| JX-M18-Sl | M18*1.5 | 9-4 | 18 | 18-18.2 | 8 | 20 | 20 |
